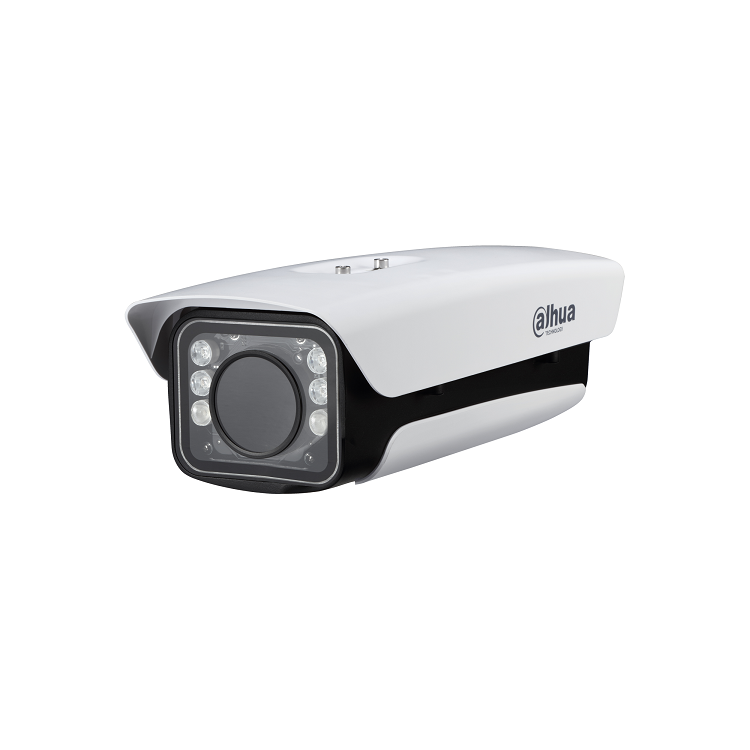

Dahua ITC237-PU1B-IR 2MP 1080P Full HD WDR Access LPR (License Plate Recognition) Camera – with 5-50mm Varifocal

$1,229.06 Inc. GST

SKU: ITC237-PU1B-IR 2MP Category:

Description

Key Features:-

– Embedded with LPR algorithm inside the camera
– Support plate cutout, overview picture snapshot and video recording
– Embedded with White list database, control the barrier
– Powerful 5-50mm manual zoom lens and IR light, ideal for monitor ANPR distance as 40m
– Wide working temperature, IP66 and superior performance for outdoor applications
– True WDR technology

Specification

Image Sensor 1/2.8 inch 2 Megara CMOS
Max. Resolution 2MP, 1920(H) x 1080(V)
Scanning System Progressive
Minimum Illumination 0.002Lux/F1.2（color）；0Lux/F1.2（IR on）
Electronic Shutter Speed 1/50~1/10000
IR Distance 40m
IR LEDs 6
Lens
Lens Type Manual/Auto Iris(DC)
Mount Type C
Lens 5-50mm option
Max Aperture F1.6
Angle of View H: 50˚~ 5.6 ˚ V:37.5 ˚ ~4.2 ˚
Focus Control Manual
Close Focus Distance 4~40m for license plate(Different height required,>10m long range recommendation)
Focus Width Range 1~2 lanes
Intelligence
License Plate Recognition (LPR) Embedded
Detection model Loop or video detection
Snapshot Overview and cutout of plate for picture
OSD overlay Time, place,plate number,lane No
White list 10000 recording
Barrier control 2 ch relay out to control the barrier
Network
Ethernet RJ-45 (100/1000Base-T)
Interoperability CGI, SDK, Onvif
Max. User Access 20
Web Viewer IE8,IE9,IE10,IE11,Chrome V33, V41
Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
Edge Storage Micro SD, Max 64GB Status Display Local PC for Instant Recording
Management Software DSS
Video
Compression H.265/H.264M/H.264H/H.264B
Resolution 1080P(1920×1080)
Frame Rate 1080P(1 ~ 25/30fps )
Bit Rate Control CBR VBR
Bit Rate 32 ~ 16384 Kbps
Day/Night Auto(ICR) / Color / B/W
Dual Stream Support, Main stream and sub stream
BLC Mode BLC,HLC,WDR(140db)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Certifications
Certifications CEFCC
Interface
Audio Interface Input/Output 2 Input / 1 Output
Video Interface BNC
RS485 1 ch
Alarm 2/2 channel In/Out
Eelectrical
Power Supply POE+
Power Consumption 17W
Environmental
Operating Conditions Temperature-30°C~+60°C, Less than 95% RH
RS485Ingress Protection &Vandal Resistance IP66
Construction
Dimensions 447mm ×240mm ×233mm
Net Weight 4.1 kg with packaging
